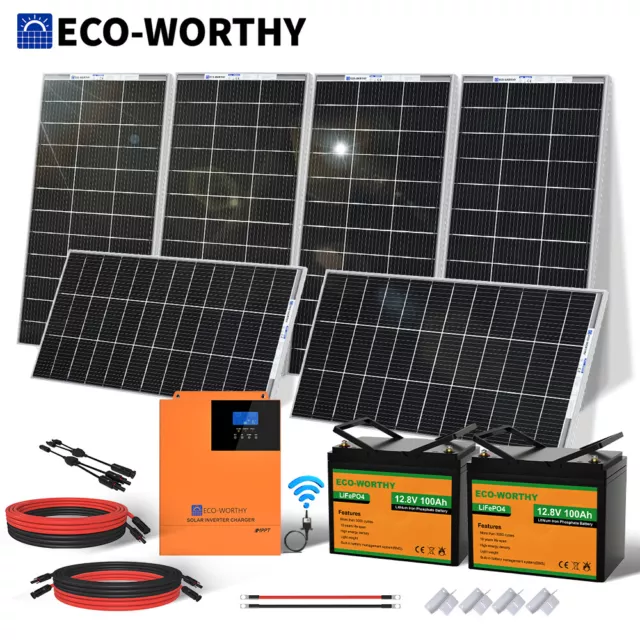

1200W WATT BIFACIAL Solar Panel Kit MPPT System & Lithium Battery Home

Maximizing Lithium Battery Charging

1. Understanding MPPT and Lithium Batteries

So, you’re wondering if you can use MPPT (Maximum Power Point Tracking) with your lithium battery setup? That’s a smart question! After all, you want to get the most juice out of your solar panels and into your battery bank, right? Let’s dive into the details without getting too bogged down in technical jargon.

Essentially, MPPT charge controllers are designed to optimize the power transfer from your solar panels to your batteries. They do this by constantly adjusting the voltage and current to find the “maximum power point” of the panels. Think of it like finding the sweet spot where the panels are producing the most wattage possible at any given moment, even as the sun’s intensity changes throughout the day. This is especially important if you use solar panels. MPPT technology is really useful for getting the most efficient charging possible. Otherwise, you’d be leaving power on the table — and nobody wants that!

Lithium batteries, on the other hand, are known for their high energy density, long lifespan, and relatively flat voltage curve. They’re becoming increasingly popular for solar power systems, electric vehicles, and other applications because of these advantages. However, they also have specific charging requirements that need to be met to ensure their longevity and safety. These lithium batteries are now the go to battery for many applications.

Now, the million-dollar question: do these two technologies play nicely together? Short answer: usually, yes! But there are a few key considerations to keep in mind. So keep your lithium batteries in mind.

MPPT For Lithium Batteries 36 Volt Solar Panel Charge

Compatibility Check

2. Ensuring a Smooth Pairing

Before you go hooking up any old MPPT controller to your shiny new lithium battery, it’s crucial to make sure they’re compatible. Not all MPPT controllers are created equal, and some may not be designed to work with lithium batteries’ specific charging profiles. Ignoring this step could lead to undercharging, overcharging, or even damage to your expensive lithium battery. And trust me, you don’t want that kind of fireworks (metaphorically speaking, of course!).

The most important thing to look for is an MPPT controller that offers customizable charging parameters. Lithium batteries typically require a specific voltage and current profile during charging, which differs from traditional lead-acid batteries. A good MPPT controller will allow you to adjust these settings to match your lithium battery’s specifications. Always consult your lithium battery’s datasheet or manufacturer’s recommendations for the correct charging parameters. They’ll usually tell you the bulk voltage, float voltage, and absorption time, which are crucial for proper charging.

Another thing to consider is temperature compensation. Some MPPT controllers have built-in temperature sensors that automatically adjust the charging voltage based on the battery’s temperature. While this is beneficial for lead-acid batteries, it’s generally not necessary for lithium batteries, as their charging voltage isn’t as sensitive to temperature changes. In fact, some lithium batteries even have built-in battery management systems (BMS) that handle temperature monitoring and protection themselves. In such cases, you might want to disable temperature compensation on the MPPT controller to avoid any conflicts.

Finally, make sure the MPPT controller has adequate protection features, such as over-voltage protection, over-current protection, and short-circuit protection. These features are essential for preventing damage to both the controller and the battery in case of any faults or abnormalities. Think of them as safety nets that will keep your system running smoothly and safely.

30A MPPT Lithium Battery Charger Solar Controller Charge

Setting Up Your MPPT Controller for Lithium Batteries

3. The Configuration is Key

Alright, you’ve got a compatible MPPT controller, and you’re ready to hook it up to your lithium battery. Excellent! But before you flip the switch, you’ll need to configure the controller with the correct charging parameters. This is where things can get a little technical, but don’t worry, we’ll walk you through it. Take your time while you do this.

First, dig out the datasheet for your lithium battery. This document contains all the essential information about your battery, including its recommended charging voltage, charging current, and cut-off voltage. Pay close attention to these values, as they’re the key to proper charging. Typically, lithium batteries are charged in two stages: constant current (CC) and constant voltage (CV). During the CC stage, the controller delivers a constant current to the battery until it reaches a specific voltage (the bulk voltage). Then, during the CV stage, the controller maintains that voltage while the current gradually decreases as the battery approaches full charge.

Next, access the settings menu on your MPPT controller. This may involve pressing a series of buttons, using a computer interface, or even connecting to a mobile app, depending on the controller model. Once you’re in the settings menu, look for options related to battery type, charging voltage, charging current, and absorption time. Select the “custom” or “user-defined” battery type if available, as this will allow you to manually enter the charging parameters. Enter the recommended charging voltage from your battery’s datasheet as the bulk voltage. Set the charging current to the maximum recommended value for your battery. The absorption time is the duration for which the controller holds the voltage constant during the CV stage. Refer to your battery’s datasheet for the recommended absorption time, or set it to a default value of one to two hours.

Double-check your settings before saving them. Incorrect settings can lead to undercharging or overcharging, so it’s worth taking the time to ensure everything is correct. Once you’ve saved the settings, you’re ready to connect your MPPT controller to your lithium battery. Follow the manufacturer’s instructions for proper wiring and grounding, and always disconnect the power source before making any connections. And that’s pretty much it! With the correct configuration, your MPPT controller will efficiently charge your lithium battery and help you get the most out of your solar power system.

Lithium Batteries And MPPT Charge Controllers Now Available Form Us

Benefits and Drawbacks of Using MPPT with Lithium Batteries

4. Weighing the Pros and Cons

Okay, so we’ve established that you can use MPPT with lithium batteries, and we’ve covered the basics of how to set it up. But is it always the best choice? Let’s take a look at some of the benefits and drawbacks to help you decide if it’s right for your application. There are different things to keep in mind.

One of the biggest benefits of using MPPT with lithium batteries is increased energy harvest. MPPT controllers can extract more power from your solar panels than traditional PWM (Pulse Width Modulation) controllers, especially in suboptimal conditions like partial shading or varying sunlight intensity. This means you can charge your lithium battery faster and more efficiently, getting more usable power from your solar panels throughout the day. Also, lithium batteries have a faster charging speed than others. However, you should keep in mind that not all MPPT controllers are the same.

Another advantage is that MPPT controllers can handle a wider range of solar panel voltages. This gives you more flexibility in choosing your solar panels and allows you to connect them in different configurations. This can be particularly useful if you have limited space or want to use higher-voltage panels to reduce wiring losses. Finally, MPPT controllers typically offer advanced features like data logging, remote monitoring, and battery management, which can help you optimize your solar power system and keep track of its performance. These features can be incredibly useful for troubleshooting and identifying potential issues early on.

On the downside, MPPT controllers are generally more expensive than PWM controllers. This can be a significant factor for budget-conscious users, especially if you have a small solar power system. Additionally, MPPT controllers are more complex than PWM controllers, which means they can be more difficult to set up and troubleshoot. However, with a little research and careful attention to detail, most users can successfully configure an MPPT controller for their lithium battery. So, while there are some potential drawbacks, the benefits of using MPPT with lithium batteries generally outweigh the costs, especially for larger solar power systems or those operating in challenging conditions.

How To Program A MPPT Solar Charge Controller For Lithium Batteries

Alternatives to MPPT for Lithium Battery Charging

5. Exploring Other Options

While MPPT is often the go-to choice for maximizing solar energy harvest with lithium batteries, it’s not the only option. Depending on your specific needs and budget, there may be other charging methods that are more suitable. Let’s explore some alternatives.

PWM (Pulse Width Modulation) charge controllers are a simpler and more affordable alternative to MPPT controllers. PWM controllers work by directly connecting the solar panel to the battery and switching the connection on and off rapidly to regulate the charging voltage. While PWM controllers are less efficient than MPPT controllers, they can still be a viable option for small solar power systems or situations where cost is a major concern. However, PWM controllers are generally not recommended for lithium batteries, as they may not be able to provide the precise charging control required to prevent overcharging or undercharging. If you do decide to use a PWM controller with a lithium battery, make sure it’s specifically designed for lithium batteries and offers adjustable charging parameters.

Another alternative is to use a dedicated lithium battery charger. These chargers are designed specifically for lithium batteries and provide a highly controlled and optimized charging process. They typically offer features like constant current/constant voltage charging, temperature compensation, and battery protection. Lithium battery chargers are often used in applications where safety and reliability are paramount, such as electric vehicles and medical devices. However, they may not be as efficient as MPPT controllers for solar energy harvesting, as they don’t actively track the maximum power point of the solar panels.

Finally, some lithium batteries have built-in battery management systems (BMS) that can handle the charging process themselves. These BMS systems typically include a charging port that can be connected directly to a power source, such as a solar panel or a grid charger. The BMS monitors the battery’s voltage, current, and temperature, and adjusts the charging process accordingly to ensure safe and efficient charging. If your lithium battery has a built-in BMS with charging capabilities, you may not need a separate charge controller at all. Just make sure the power source you’re using is compatible with the BMS’s charging requirements.
